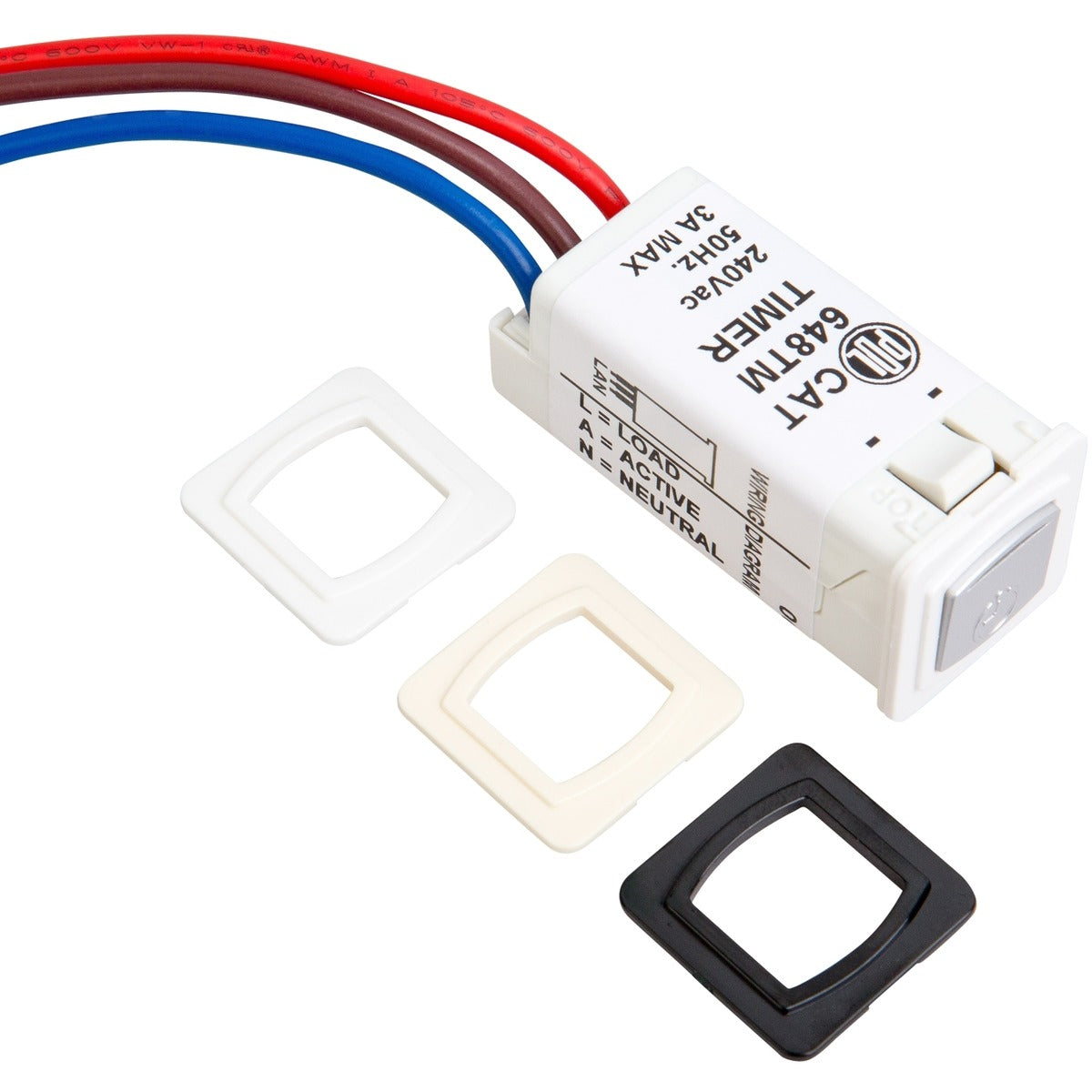

PDLTimer 600 Series Module - Push-button - 240 V - 3 A

Part of the: PDL 600 Series Range

Timer module designed to automatically turn off lights after a preset period. 600 Series module. Suitable for PDL 600. Rated current: 3A. Operating voltage 240V a.c. 50Hz Note: Requires installation by an appropriately licenced electrician.

Features:

• 230-240V a.c., 50Hz, 3A Resistive load
• Simple one-button user interface
• Modular design compatible with 600 series mounting grids
• Comes with Black, White Face Plate
• LED operating status indicator light
• 32 Preset timer settings ranging between 15sec to 120min
• 3A current carrying capacity
• Three flying leads (Active, neutral and load) for versatile installation capability
• *For inductive loads use a separate relay, eg PDL 600RM.

Three operating modes, including:

1. Delay from switch on with manual override;
2. Delay from switch on with no override;
3. Delay from switch off (after unit has been indefinitely switched on).

Note: In all modes, unit can be manually switched off at any time.

Note: Compatible with external relay for increased capacity; recommend PDL 600RM Relay Module
