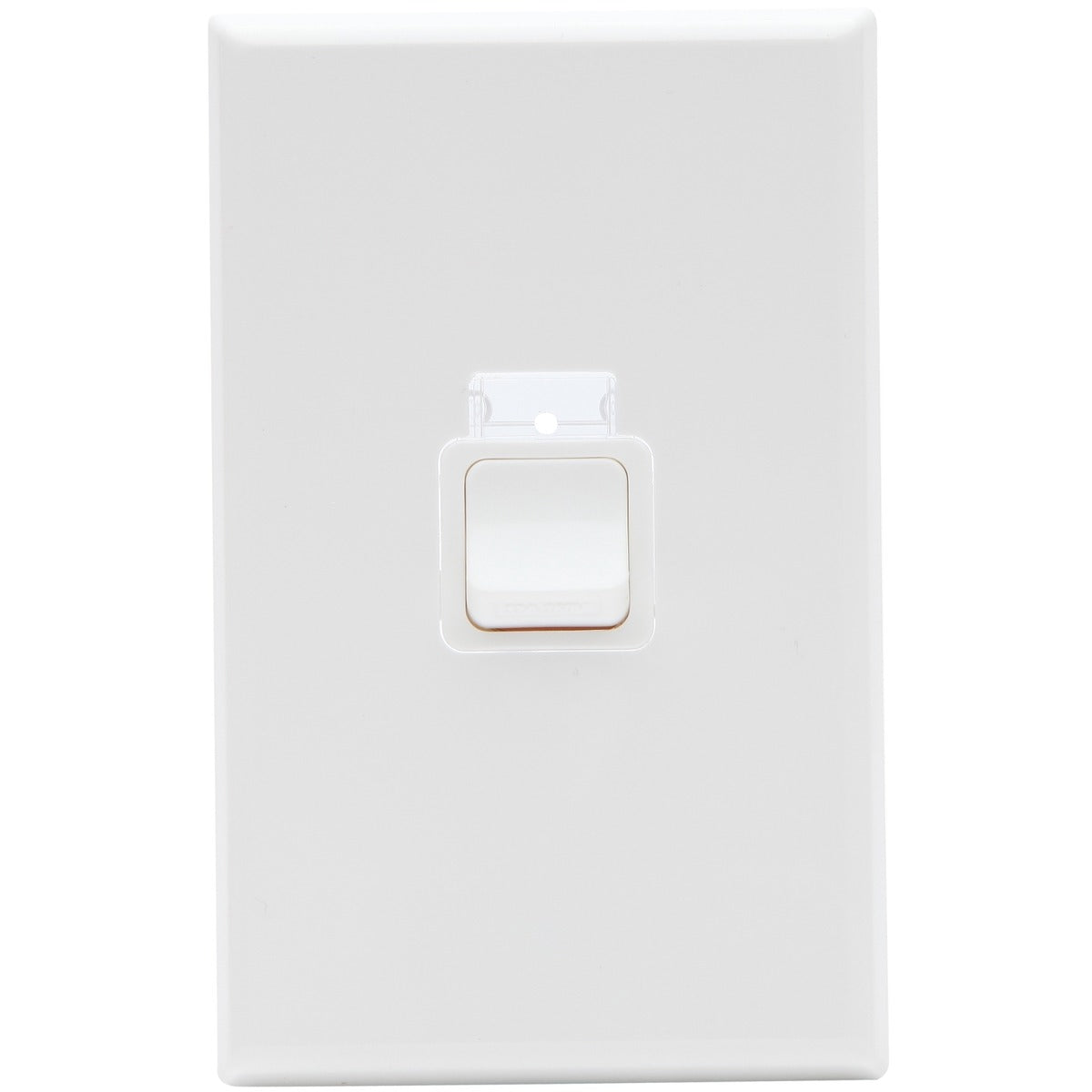

PDL Switch 600 Series - Assembled - Vertical - 1-gang - 250 V - 32 A / 20 AX - White
PDL Switch 600 Series - Assembled - Vertical - 1-gang - 250 V - 32 A / 20 AX - White
Couldn't load pickup availability
Specifications
Specifications
PDL Switch 600 Series - Assembled - Vertical - 1-gang - 250 V - 32 A / 20 AX
Part of the: PDL 600 Series Range
Switch assembly. 600 series cover plate, grid and switch mechanism are included. Suitable for 1-gang vertical installations. Assembled with plate. PDL 600. Colour: White Rated current: 32A / 20AX. Operating voltage 250V a.c. 50Hz Note: Requires installation by an appropriately licenced electrician.
Features:
- Vertical Range Switch 32A
- Plate: 118mm H x 74mm W
- Mounting centres: 84mm
- Suits cat 89 mounting block, Cat 144 flush box, Cat 145V,148V or 146V mounting bracket
- Suits Cat 680M# coloured cover plate
- Complies with Standards: AS3100 and AS3133
Ratings SP: 230V - 240V a.c., 50Hz, 32A resistive, 25AX inductive, M180. 3mm contact gap. Terminals accommodate: 2x6mm2 cables each
Ratings DP: 400v-415v A.C., 50hZ, 32a resistive, 32AX inductive.
Terminals accommodate: 4x2.5mm2 cables each or 3x4mm2 cables each.
