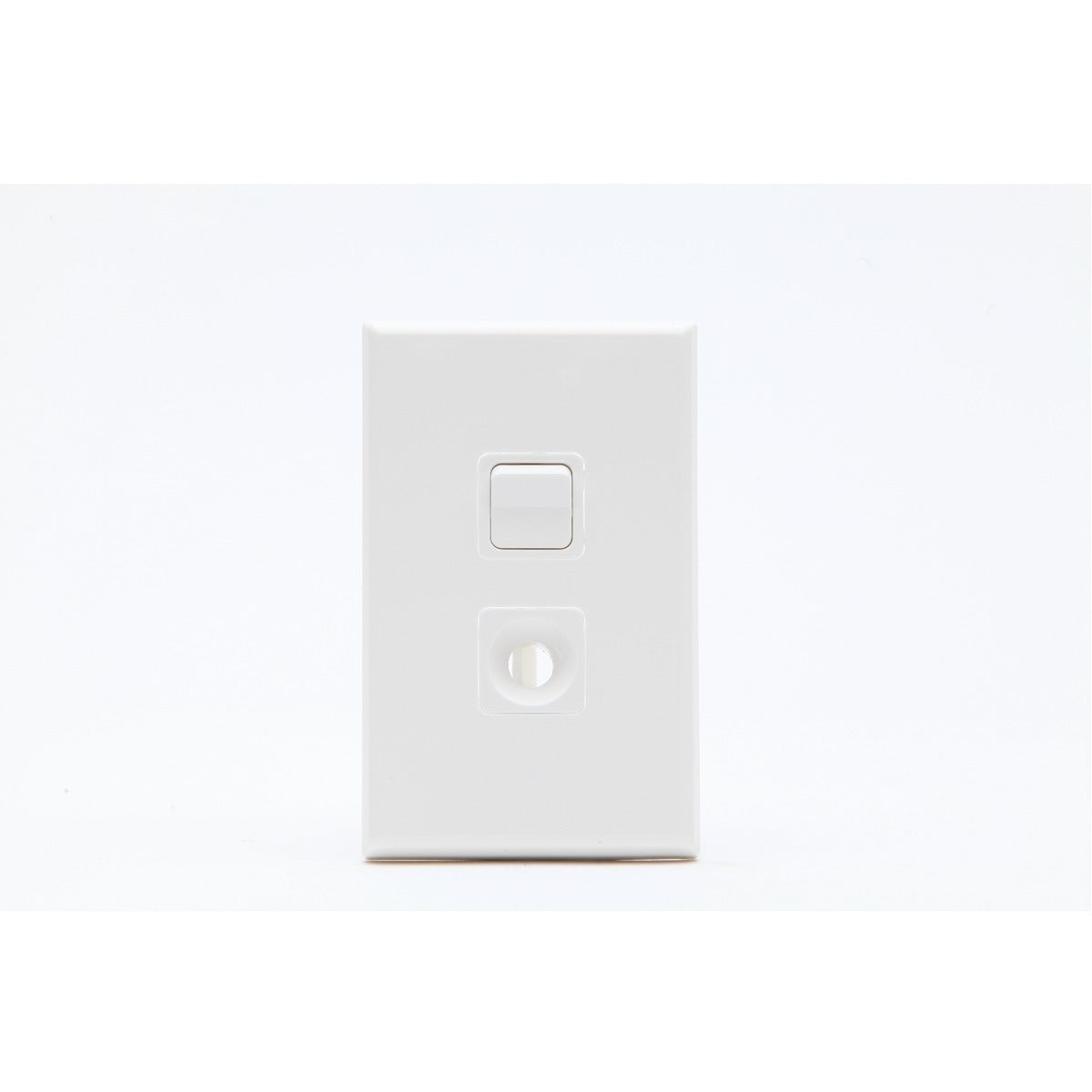

PDL Permanent Connection Unit 600 Series - 250 V - 16 AX - White
Part of the: PDL 600 Series Range
Permanent connection unit. Suitable for PDL 600. Rated current: 16AX. Operating voltage 250V a.c. 50Hz. Note: Requires installation by an appropriately licenced electrician.
Features:
- 250V a.c, 50Hz, 20A Resistive, 20AX Highly Inductive, 16AX Fluorescent to EN 60669-1, M60, Motor Rating.
- Terminals accommodate: 4 x 1.5mm2 cables each or 2 x 2.5mm2 cables each.
- Plate: 118mm x 74mm
- Mounting Centres: 84mm
- Vertical or Horizontal Mounting.
- Suits PDL89 Mounting Block, PDL144 Flush Box and PDL145V, PDL148V, PDL148H, PDL146V or PDL146H Mounting Bracket.
- PCU complies with Standards: AS3100 & AS3133
- Suits metal cover plate 682M.
Please note: Switches, Grid Plates and Modules come in white or black. To have a different coloured cover plate, eg polished brass, stainless steel or brushed bronze then you must ALSO purchase a cover plate to match the unit.
