Schneider Electric PDL Iconic electronic switch PDL356PB10MBTW-VW is a mechanism in color vivid white. This electronic switch is equipped with LED indicator. And it is compatible with range Wiser. The fixing mode of this device is clip-in. And its rated current is 10A. It is 48 mm in width, 24 mm in height, 56 mm in-depth, with an embedding depth of 52 mm. Its matching mounting box can be recessed into the surface of the wall with flush type. The connection terminals of this electronic switch are screw terminals. The surface finish is glossy, delivering an elegant and high-end feeling to a room. The electronic switch is made of PC (UL94 V-2), PC MAS056 (UL94 V-2), making it as resistant as possible. What's more, it well satisfied the standard of AS/NZS 60669.2.1. And it is mercury-free. The standard Iconic collection from PDL by Schneider Electric is joined by two completely new looks with the sophisticated style and fresh Essence skin ranges. Electronic Switches are programmable via the Wiser Room app. To provide On/Off, 24- hour, 7-day scheduling by month. They are ideal for scheduling operating times for appliances like towel rails, garden lights, or hot water booster elements, and can be set to automatically track seasonal sunrise and sunset changes.

Features:

• The Iconic connected switch 10AX is suitable for controlling a wide variety of loads.
• The housing with integrated terminals allows quick installation into 3Gang plates and deep wall boxes.
• The product comes in a 3-wire design and requires a neutral. Control Link provides the option for hard-wired multiway switching. The subtle LED status indicator can be customised using the Wiser SE app.
• When in BLE mode the 10AX switch has a 1sec-24hr time delay and 24/7 scheduling functionality.
• Once connected to the Wiser Hub, the switch can be integrated into moments or simply be operated as a timer or time scheduler.

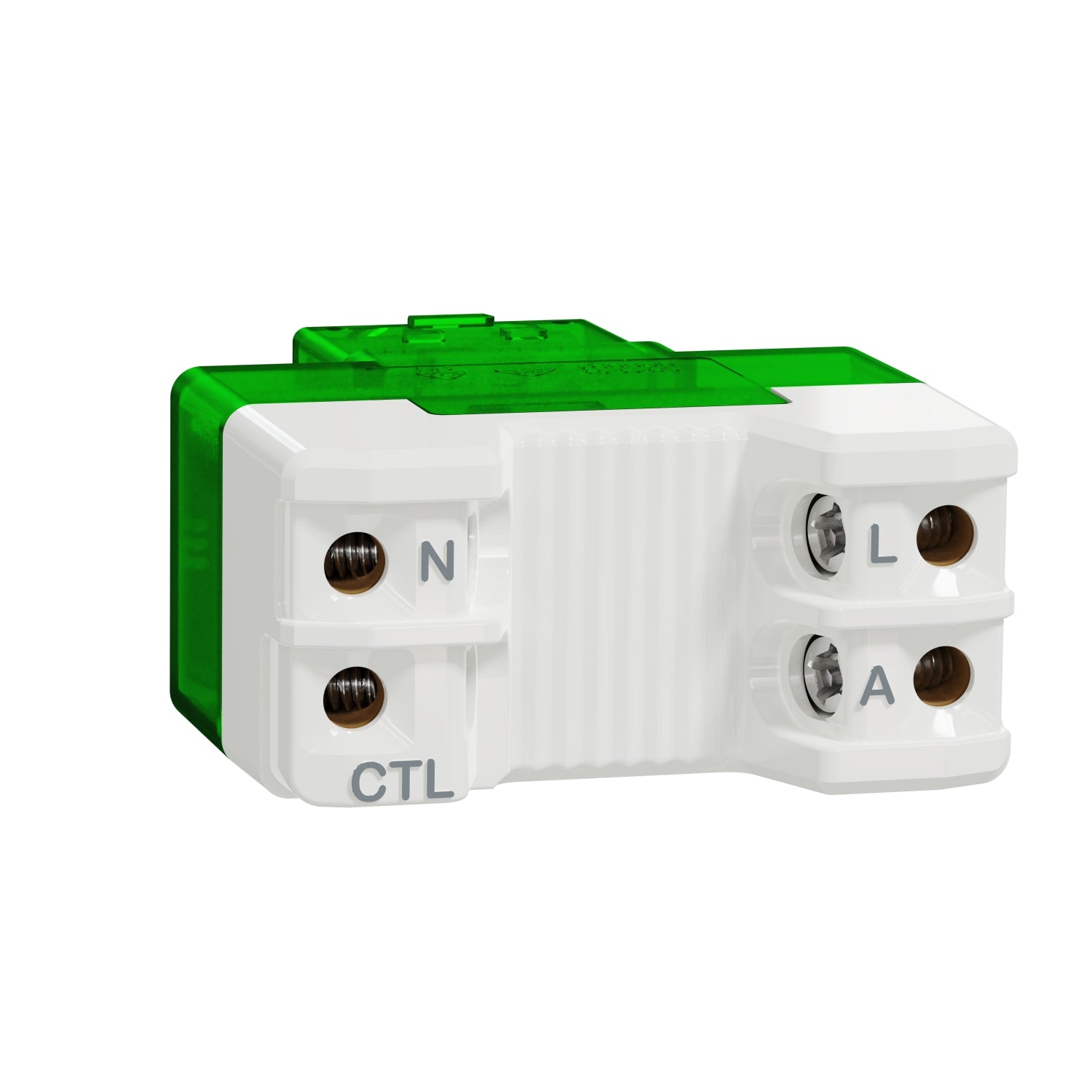

• It can be controlled through the push-button on the wall, remotely using the Wiser SE app or voice command.
