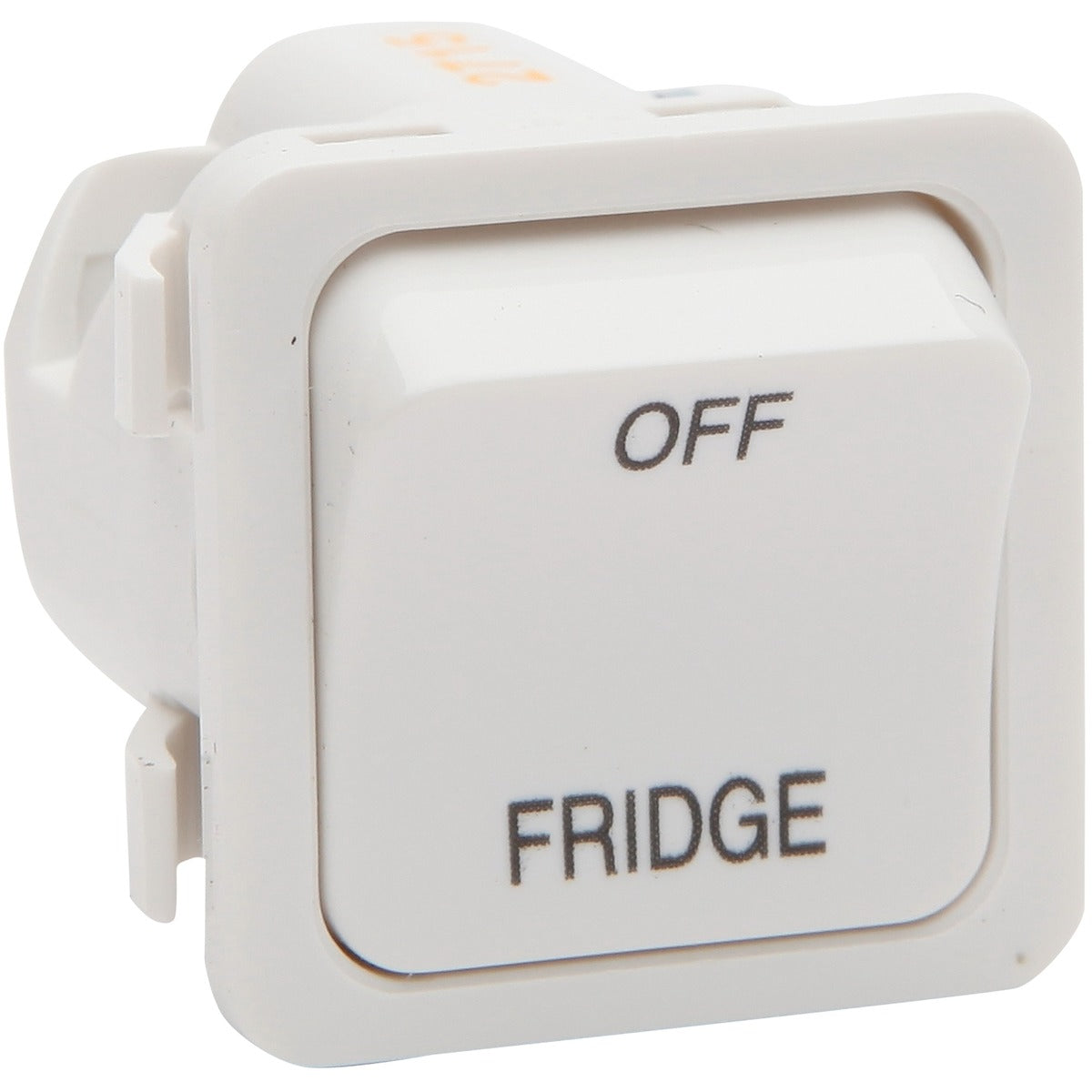

PDL Switch 600 Series Mechanism - Single-pole - 1-gang - Marked OFF-FRIDGE - 250 V - 20 A / 16 AX - White

Part of the: PDL 600 Series Range

Switch mechanism for 1-gang installations. Single-pole switch. Switch is marked OFF-FRIDGE. PDL 600. Rated current: 20A / 16AX. Operating voltage 250V a.c. 50Hz Note: Requires installation by an appropriately licenced electrician.

Features:

• Ratings: 250V a.c., 50Hz, 20A Resistive, 20AX Highly Inductive, 16AX Fluorescent, M60, 2 - Way.
• Terminals accomodate: 4 x 1.5mm2 cables each or 2 x 2.5mm2 cables each.

All following items have the same specs as the above item

Available Variations:

• PDL681M20A/M  -  Marked 'AUTO/MANUAL'
• PDL681M20D  -  Marked 'DINING'
• PDL681M20DR  -  Marked 'DOOR'
• PDL681M20DW  -  Marked 'DISHWASHER'
• PDL681M20DY  -  Marked 'DRYER'
• PDL681M20F  -  Marked 'FAN'
• PDL681M20FG  -  Marked 'FRIDGE'
• PDL681M20F/R  -  Marked 'FORWARD/REVERSE'
• PDL681M20G  -  Marked 'GAS'
• PDL681M20GN  -  Marked 'GARDEN'
• PDL681M20H  -  Marked 'HEAT'
• PDL681M20HD  -  Marked 'HOOD'
• PDL681M20HLF  -  Marked 'HIGH/FAN/LOW'
• PDL681M20HWS  -  Marked 'HWS'
• PDL681M20L  -  Marked 'LIGHT'
• PDL681M20LO  -  Marked 'LOUNGE'
• PDL681M20MR  -  Marked 'MIRROR'
• PDL681M20MW  -  Marked 'MICROWAVE'
• PDL681M20O  -  Marked 'OUTSIDE'
• PDL681M20PL  -  Marked 'POOL'
• PDL681M20PU  -  Marked 'PUMP'
• PDL681M20S  -  Marked 'SPA'
• PDL681M20SE  -  Marked 'SENSOR'
• PDL681M20ST  - Marked 'STAIRS'
• PDL681M20TV  -  Marked 'TV'
• PDL681M20WH  -  Marked 'WASH'
