PDL 56 Series

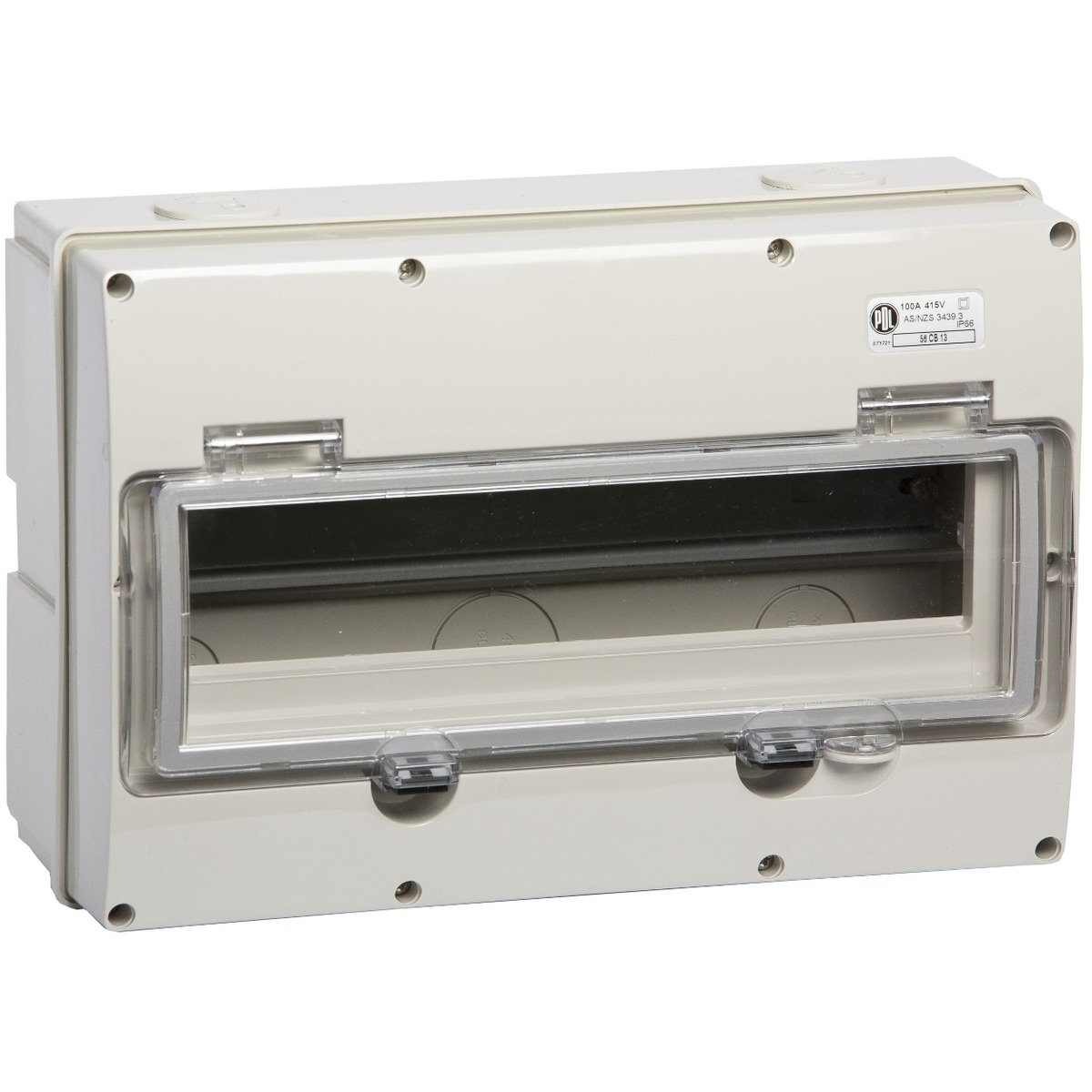

PDL56CB13 - PDL 56 Switchboard 13-Way Surface Mount IP66 - Grey

Part of the: PDL 56 Series Range

Features:

• Fully complies with AS/NZ Standards 3439.3
• Clear cover flap for easy indication of status – pad-lockable
• IP66
• Can be latched permanently open
• Fits up to 13 standard width (18mm) DIN accessories (total 234mm)
• Ample wiring room above and below the DIN rail
• Supplied complete with 1xEarth and 2xNeutral Bars as standard, with wire links provided where applicable
• The bars are raised above the base for easy termination
• Spare 7.5pole width, pole filler strip supplied
• Circuit identification labels supplied
• 56 Series mechanical flap latches on the cover flap
• Maximum Rated Current 100A with suitably rated cable (25mm maximum)
• Rated operational voltage: 415V a.c.
• Short circuit withstand strength:  10kA
• Rated insulation voltage:  1000V a.c.
• 2 x 32mm and 6 x 25mm conduit entry points
• 2 x 40mm, 2 x 32mm, and 2 x 25mm rear entry cut-outs
• Board size (with enclosure) 295mmW x 123mmD x 198mmH
• Colour: Grey
