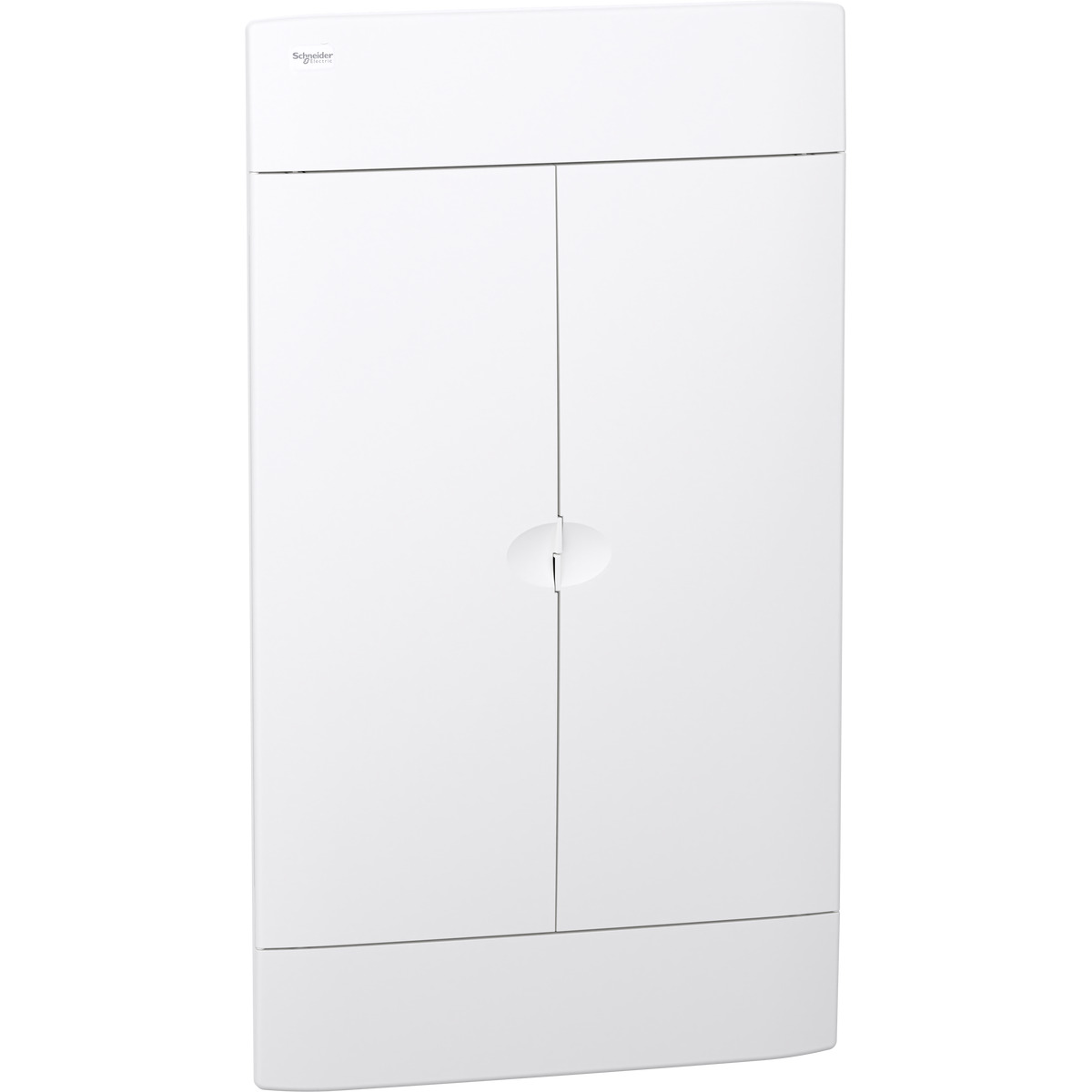

R9HSB315F - Switchboard Enclosure, Resi9, type 2, 3 row, 45 ways, Flush mounted

Part of the: Schneider Electric Resi9 Range

Resi9 switchboard enclosure is surface mounted. The rated current is 100A. This switchboard is composed of 3 rows of 15 modules of 18mm (45 modules total). It has plain double door with door opening on both left and right The provided equipements are earthing bar, neutral bar, circuit identification label and blanking plate. It is dedicated to residential market. The Ue rated operational voltage is 230VAC or 400VAC. The Ui rated insulation voltage is 500V. It can be mounted on DIN rail for modular installation. The degree of protection is IP40 in an enclosure. This switchboard comply with AS/NZS 61439-3 and supports compliance to AS/NZS 3000 standards. The switchboard colour is white electric (RAL9003) This switchboard is complies with AS/NZS 61439-3 and AS/NZS 3000 standards.
