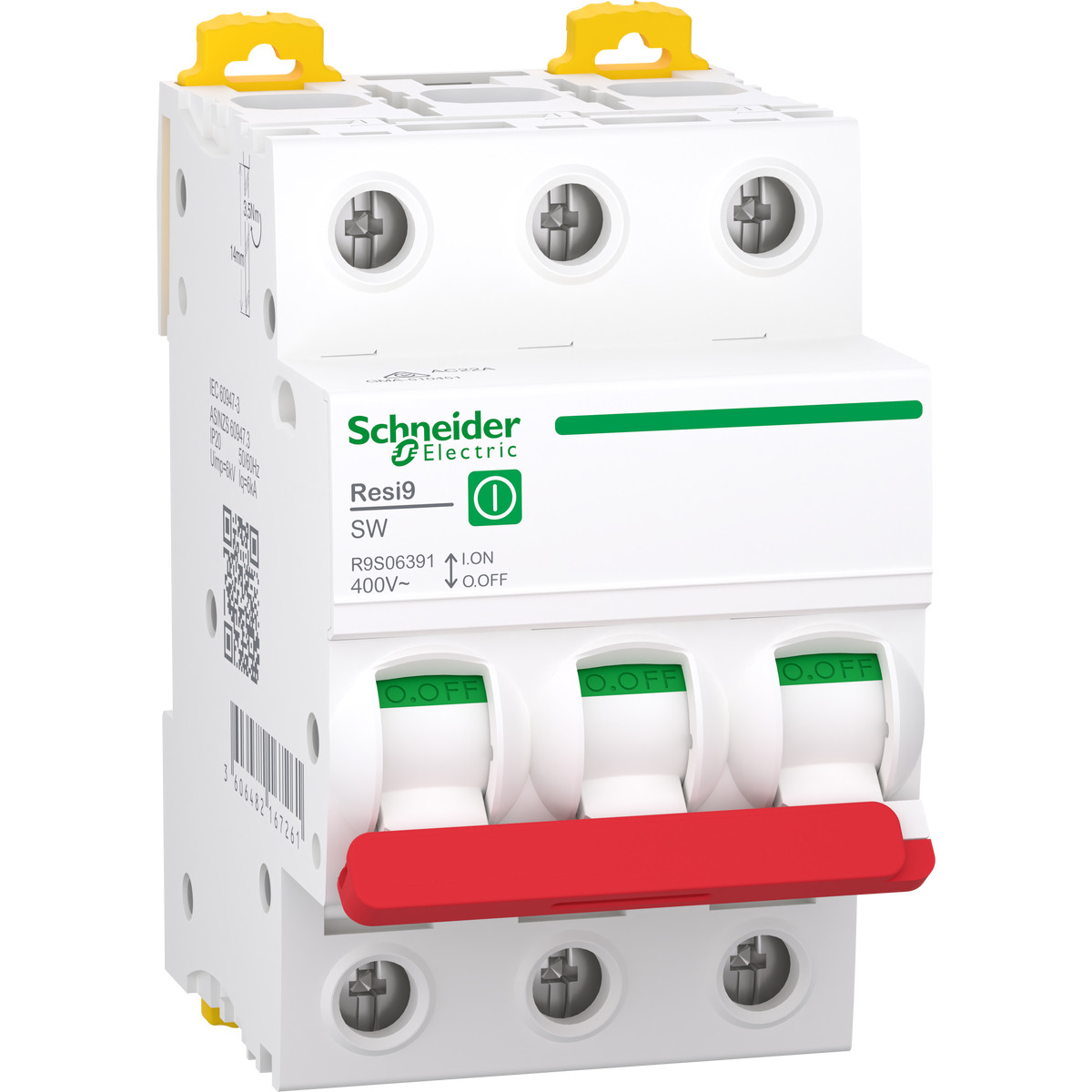

R9S06391 - switch disconnector, Resi9, 3P, 100A

Part of the: Schneider Electric Resi9 Range

This Resi9 product is a switch disconnector. It is a 3P switch disconnector with 100A In rated current. This switch disconnector is used for control (opening and closing of circuits under load). This product is also used for disconnection of on-load electrical circuits already protected against overload and short-circuits. It has a position contact indication suitable for industrial isolation according to IEC 60947-3 standard. It is targeted to residential for individual and collective buildings. The Ue rated operational current is 400VAC. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ui rated insulation voltage is 500VAC. The operating frequency is 50Hz or 60Hz. It can be mounted on DIN rail for modular installation. Its width is 6 pitches of 9mm. The product colour is white (RAL9003). The dimensions are (W) 54mm x (H) 85mm x (D) 75mm. The IP degree of protection is IP20 and IP40 in enclosure. The operating temperature is -25 °C to 70°C. The storage temperature is -40°C to 70°C. The operating temperature is -25 °C to 70°C. The storage temperature is -40°C to 70°C.
