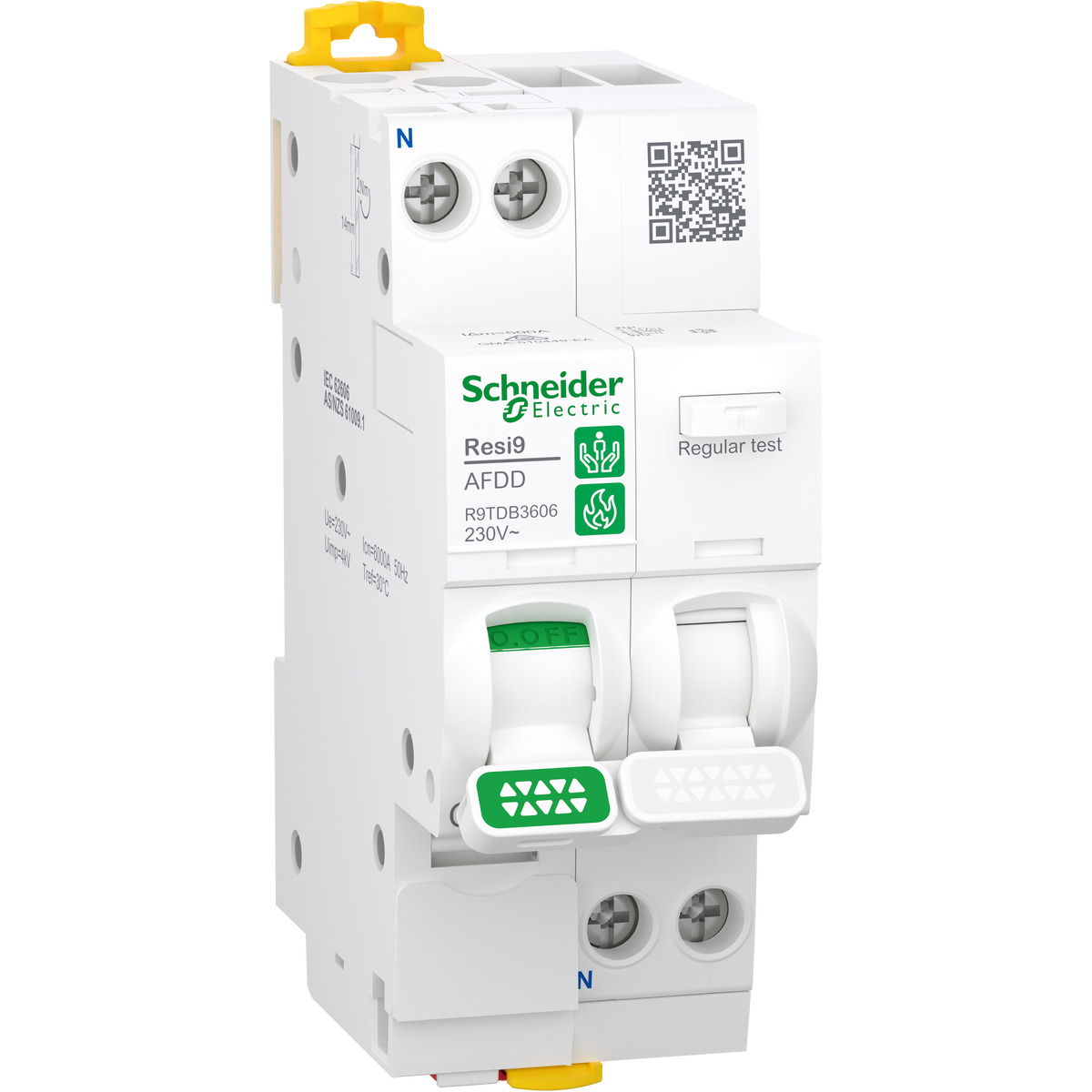

R9TDB3606 - Arc fault detection RCBO, Resi9, 1P+N, 6A, 30 mA, C Curve, 6000A, A type, All-in-one

Part of the: Schneider Electric Resi9 Range

This Resi9 product is an arc fault detection RCBO. It is a 1P+N circuit breaker with 1 protected pole, 6A rated current (In) at 30°C and C tripping curve. The operating frequency is 50Hz. The earth leakage protection class is type A with a sensitivity of 30mA. The earth-leakage protection time delay is instantaneous. The breaking capacity (Icn) is up to 6000A at 230VAC with operating frequency of 50Hz, conforming to AS/NZS 61009.1 standard. This Resi9 circuit breaker is compatible with TN-S, TT and IT earthing system. It has a position contact indication suitable for industrial isolation. The electrical endurance goes up to 10000 cycles with operating frequency of 50Hz, conforming to IEC 61009 standard. The mechanical endurance goes up to 20000 cycles. It detects arc fault who comes from fire start and is constantly analyzing electric settings. It isolates involved circuit automatically before first flame appearance. It is particulary adapted for circuit protection where the fire start is the most important in domestic intallation (outdoors, rooms). It has an ON/OFF and fault trip indication for signalling (local) with toggle control. This product is compatible with comb busbar and distribution block. It has a tunnel type terminal connection at top or bottom. The connection allows rigid copper cables from 1mm² to 16mm². It has a tunnel type terminal connection at top or bottom. The connection allows flexible copper cables from 1mm² to 10mm². The rated operational voltage (Ue) is up to 230VAC with operating frequency of 50Hz, conforming to AS/NZS 61009.1 standard. The rated insulation voltage (Ui) is up to 400VAC. It has a rated impulse withstand voltage (Uimp) of 4kV, conforming to AS/NZS 61009.1 standard. The rated service breaking capacity (Ics) is up to 6000A at 230VAC with operating frequency of 50Hz, conforming to AS/NZS 61009.1 standard. The rated breaking ad making capacity is up to 500A. The threshold tripping voltage is up to 275V. This circuit breaker has a RCM quality label. It can be mounted on DIN rail for modular installation. The width in 9mm pitches is 4. The dimensions are (W) 36mm x (H) 91mm x (D) 75mm. The product colour is white (RAL 9003). The product weight is 237g. The pollution degree is 2. The level of tropicalisation is severity B, conforming to IEC 60068-2-30 standard for 28 days. The relative humidity is 95% at 55°C. The overvoltage category is III, the limitation class is 3 and the tightening torque of connection is 2N.m (top or bottom) for PZ1 screwdriver type. According to IEC 60529 standard, the IP degree of protection is IP20. The operating temperature is from -25°C to +70°C. The storage temperature is from -40°C to +85°C. This product complies with the EN/IEC 62606 and AS/NZS 61009.1 standards .
