PDL600 Sockets

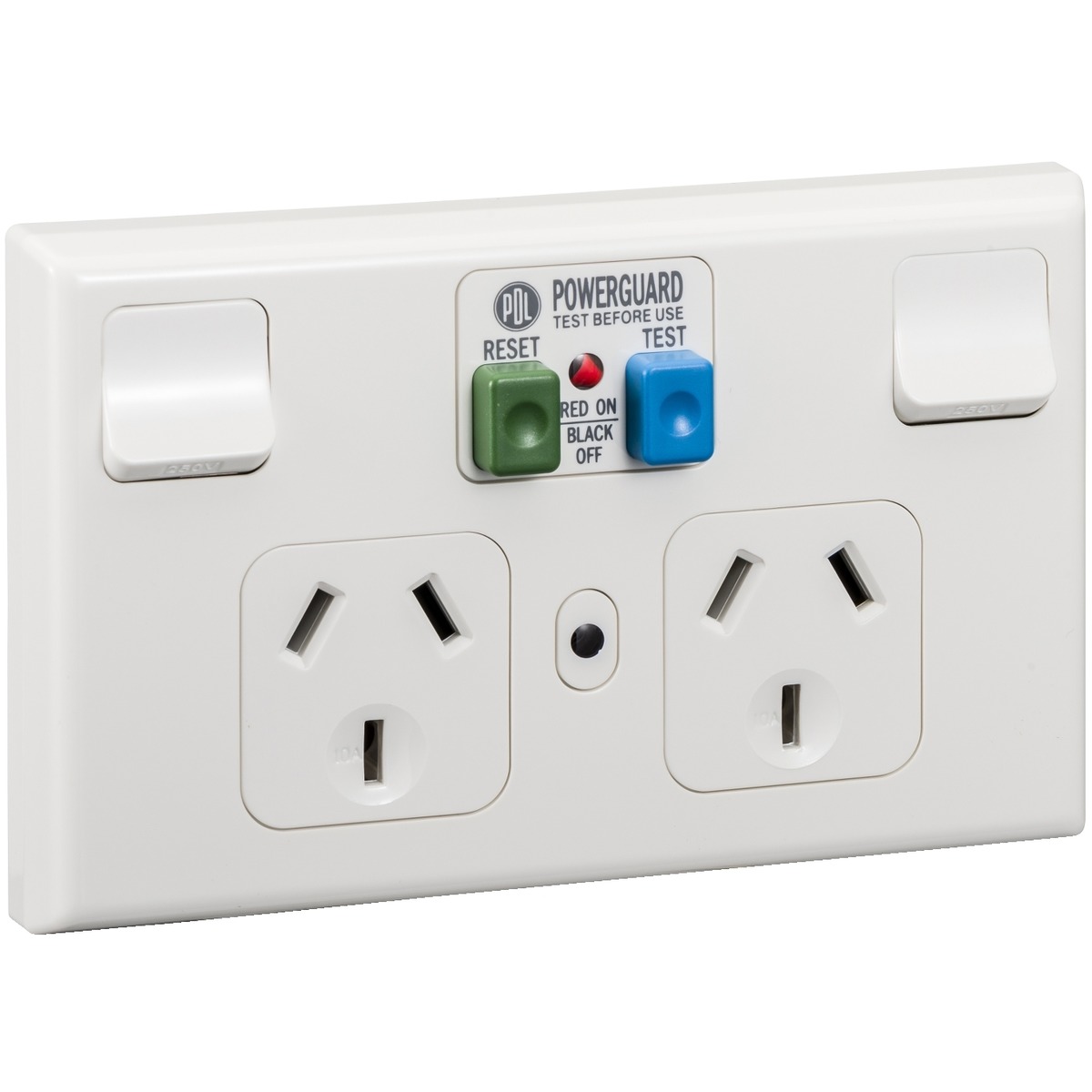

PDL Socket Outlet 600 Series - Twin switched - Assembled - Horizontal - RCD protection - 240 V - 10 A - White

Part of the: PDL 600 Series Range

Applications:  Perfect in any household environment, especially in the kitchen, bathroom and other high usage areas.

Features:

• 20A resistive rating on RCD unit, meaning that other sockets can be wired downstream to benefit from RCD protection.
• 30mA RCD protection for personal safety
• Average unit tripping time of 0.03 of a second to minimise exposure to a fatal shock situation.
• Mechanical indication of device status - indicates whether the RCD is latched or has been tripped.
• Amber neon indication of power availability.
• Unit remains latched in loss of voltage situations - doesn't need to be reset.
• Double pole switching protects against faulty wiring.
• Large clearly labelled terminals for input (Line) and output (Load).

Rating:

• Mounting Centres 84mm
• 230-240V a.c. 50Hz
• Maximum load: 4800W
• Type tested to AS/NZS3190

All PDL RCDs are tested rigorously to ensure maximum quality and reliability in the field.

Suits metal cover plate:  695RCDM PB/BBZ/SS - plastic replacement cover plates not available
