PDL600 Sockets

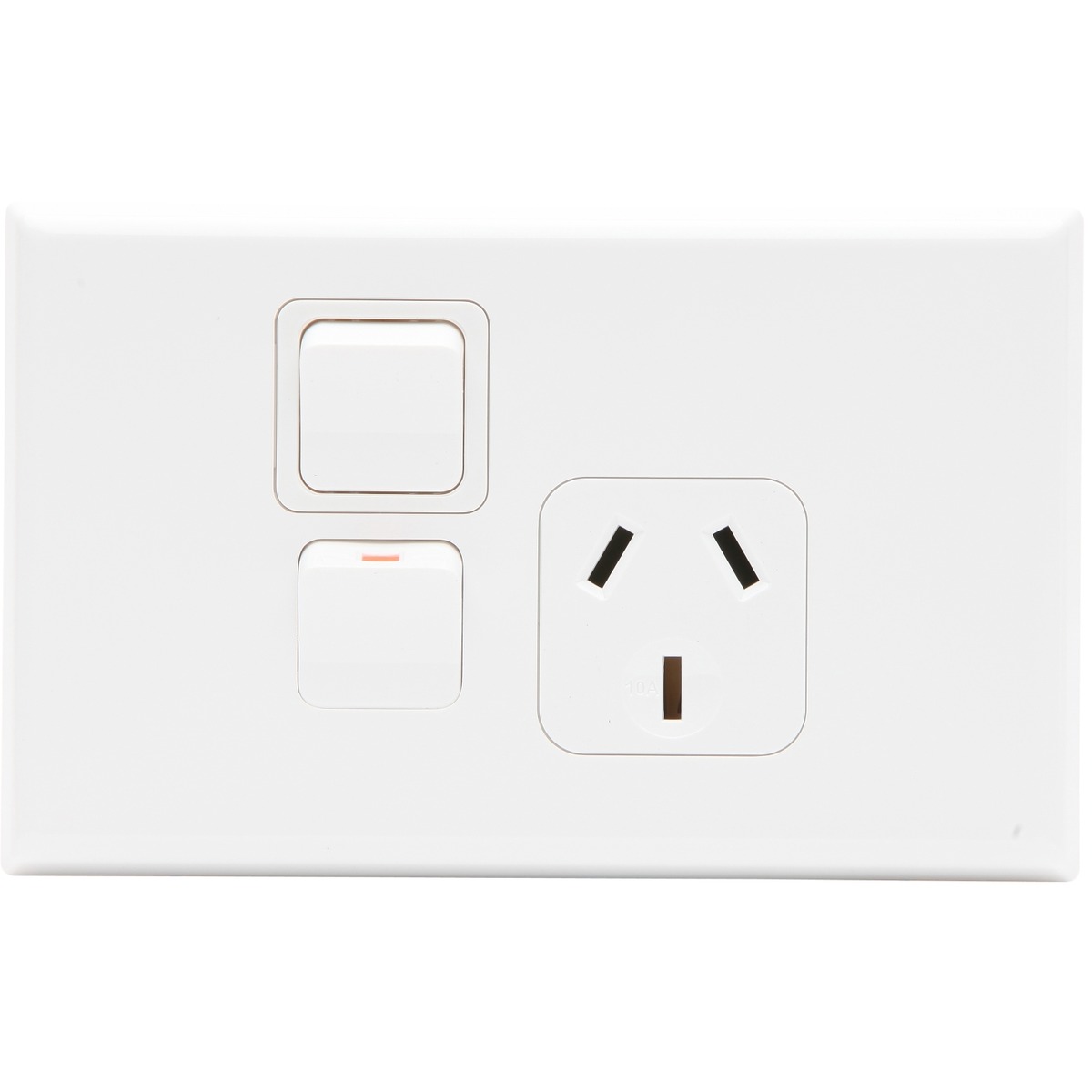

PDL Socket Outlet 600 Series - Single switched - Assembled - Horizontal - Optional extra switch - 250 V - 10 A – White

Part of the: PDL 600 Series Range

Socket outlet assembly for horizontal installations. Single switched socket with optional extra switch. 600 Series cover and socket grid are included. PDL 600. Colour: White Rated current: 10A (socket), 16AX (extra switch). Operating voltage 250V a.c. 50Hz Note: Requires installation by an appropriately licenced electrician.

Features:

• Plate: 74mm (h) x 118mm (w)
• Mounting centres: 84mm
• Suits 89 Mounting Block, 144 Flush Box, 148H or 146H Mounting Bracket..
• Horizontal mounting
• Switched sockets comply with Standards: AS3100, AS3133 and AS3112
• Ratings: 230V - 240V, ac, 50Hz
• For additional safety, all PDL 600 Designer Series sockets are fitted with safety shutters behind the pin holes.
