PDL600 Sockets

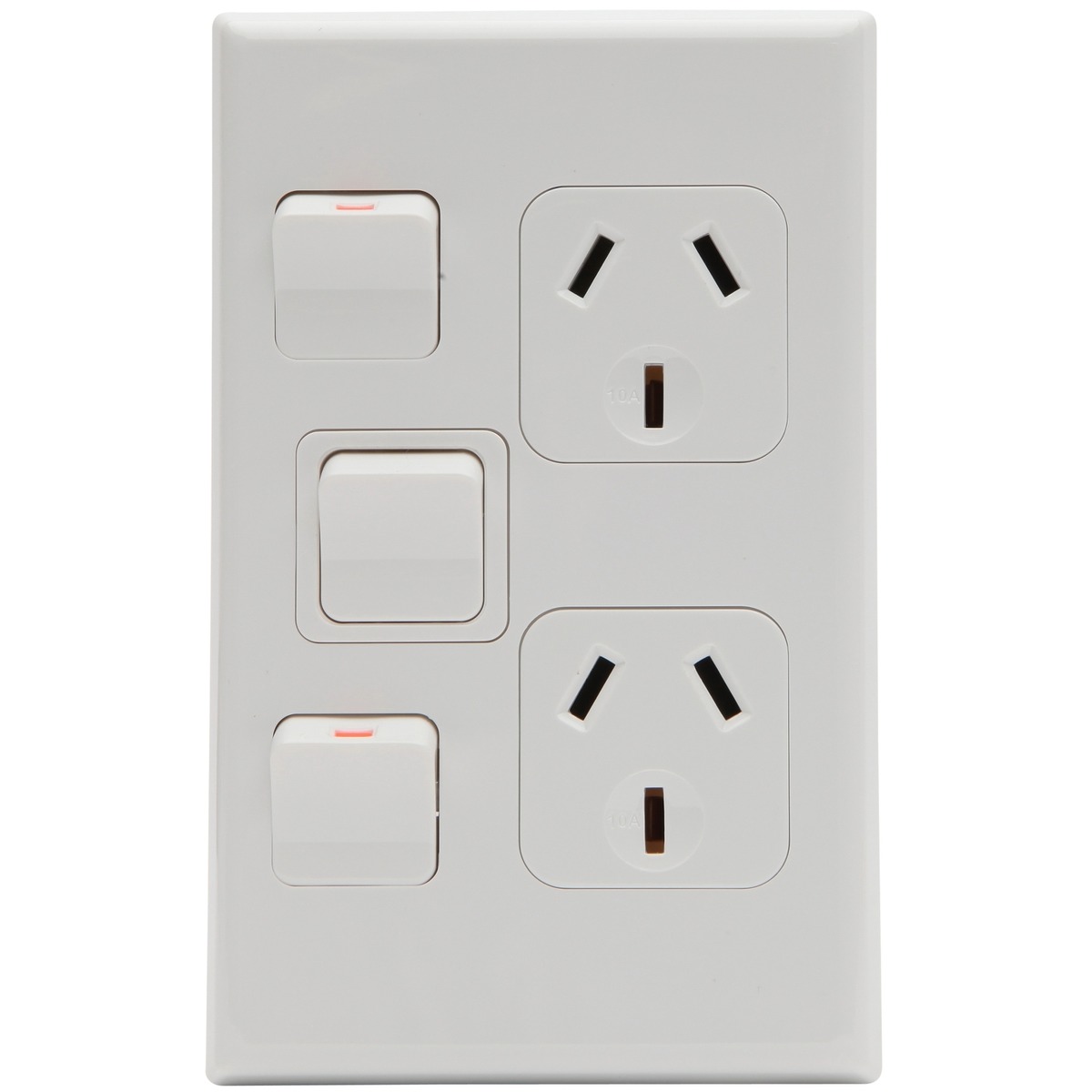

PDL Socket Outlet 600 Series - Twin switched - Assembled - Vertical - Extra switch - 250 V - 10 A – White

Part of the: PDL 600 Series Range

Socket outlet assembly for vertical installations. Twin switched socket with extra switch. 600 Series cover and socket grid are included. PDL 600. Colour: White Rated current: 10A (socket), 16AX (extra switch). Operating voltage 250V a.c. 50Hz. Note: Requires installation by an appropriately licenced electrician.

Features:

• Plate: 118mm (h) x 74mm (w)
• Mounting centres: 84mm
• Suits 89 Mounting Block, 144 Flush Box, 145V, 148V or 146V Mounting Bracket.
• Vertical mounting
• Switched sockets comply with Standards: AS3100, AS3133 and AS3112
• Ratings: 230V - 240V, ac, 50Hz
• For additional safety, all PDL 600 Designer Series sockets are fitted with safety shutters behind the pin holes
