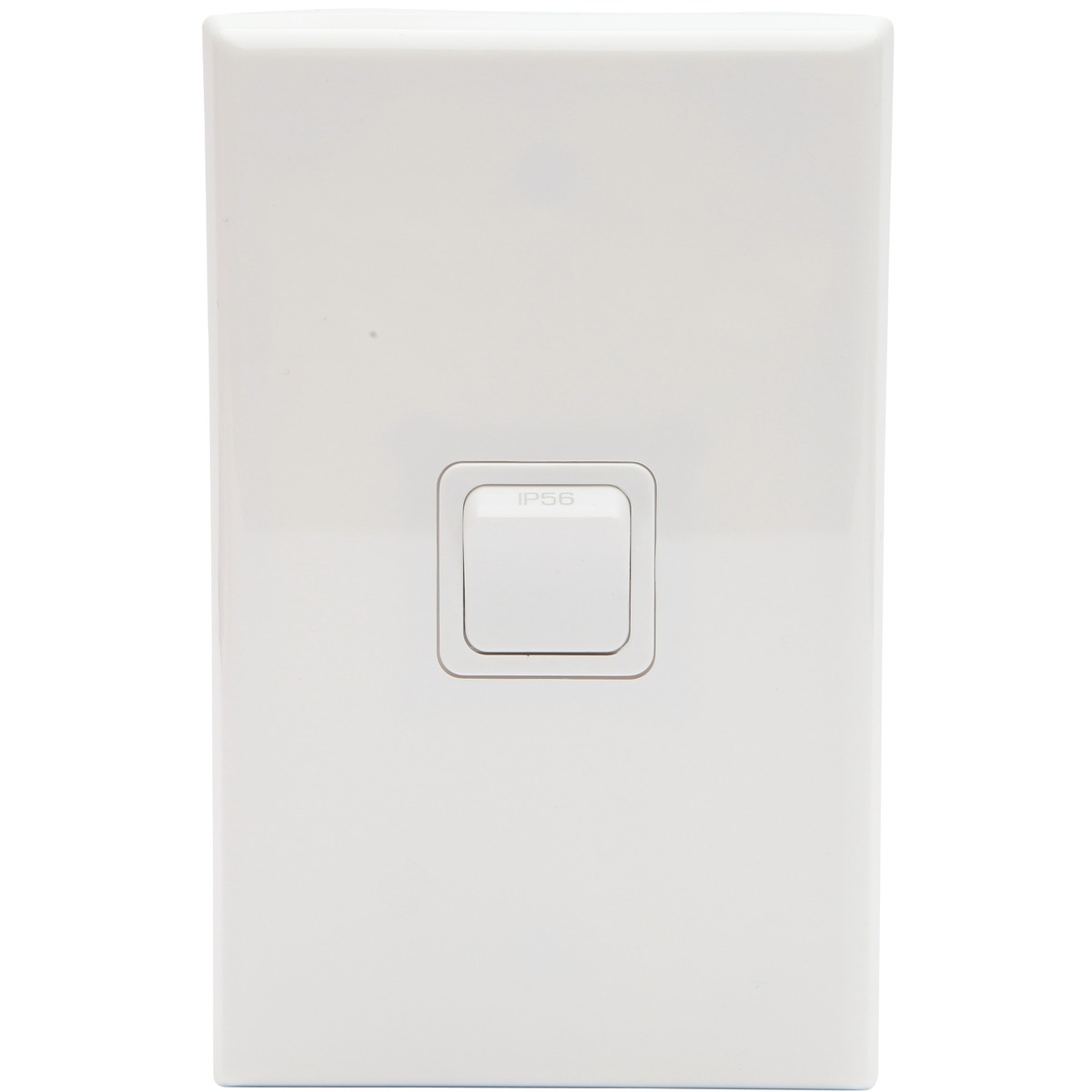

PDL Switch 600 Series - Assembled - Vertical - 1-gang - Single-pole - 250 V - 16 A / 16 AX - White
PDL Switch 600 Series - Assembled - Vertical - 1-gang - Single-pole - 250 V - 16 A / 16 AX - White

PDL600 Switches

PDL Switch 600 Series - Assembled - Vertical - 1-gang - Single-pole - 250 V - 16 A / 16 AX - White

Product code PDL681VWPWH

Gst Inc

$42.49 inc GST

|

PDF Files

Product Data Sheet: PDL681VWPWH
  • Description

PDL Switch 600 Series - Assembled - Vertical - 1-gang - Single-pole - 250 V - 16 A / 16 AX - White

Part of the: PDL 600 Series Range

Switch assembly. 600 series cover plate, grid and switch mechanism are included. Suitable for 1-gang vertical installations. Assembled with plate. PDL 600. Colour: White Rated current: 16A / 16AX. Operating voltage 250V a.c. 50Hz Note: Requires installation by an appropriately licenced electrician.

Features:

  • 250V a.c, 50Hz, 20A Resistive, 20AX Highly Inductive, 16AX Flourescent to EN 60669-1, M60, Motor Rating.
  • Terminals accommodate: 4 x 1.5mm2 cables each or 2 x 2.5mm2 cables each.
  • Plate: 118mm x 74mm
  • Mounting Centres: 84mm
  • Vertical or Horizontal Mounting

Suits:

  • PDL89 Mounting Block
  • PDL144 Flush Box
  • PDL145V
  • PDL148V
  • PDL148H
  • PDL146V
  • PDL146H Mounting Bracket

Note: Switches comply with Standards: AS3100, AS3133, BS3676 and AS1939. Switches meet the requirements for installation in Zone 1 as per AS/NZS 3000:2000, Sections 7.1, 7.2 and 7.6 and NZS 3000:1997, Sections 702.9.2 and 702.9.3

Note: Switches, Grid Plates and Modules come in white or black.  To have a different coloured cover plate, eg polished brass, stainless steel or brushed bronze then you must ALSO purchase a cover plate to match the unit.
